PRODUCT OVERVIEW

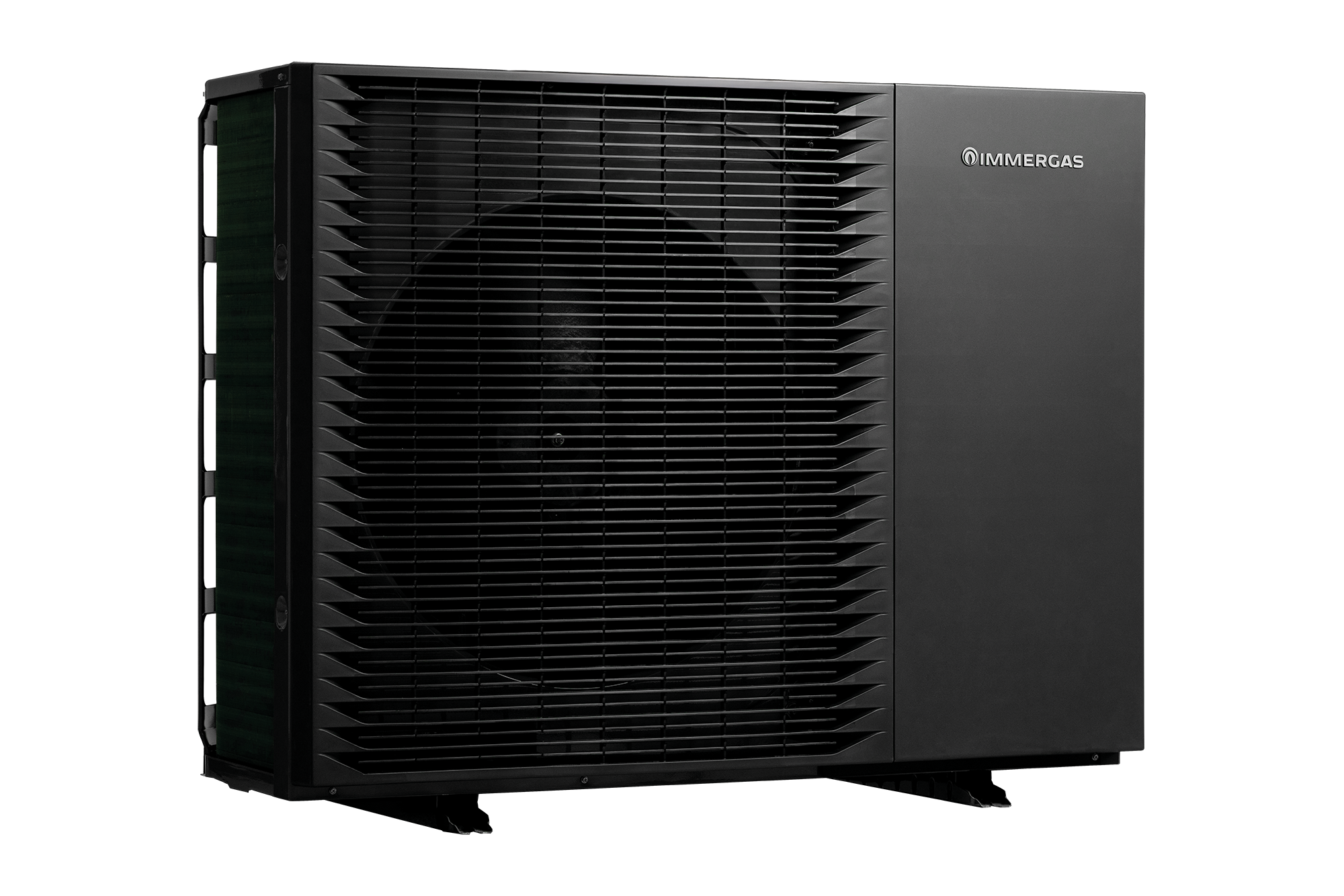

The Magis M Top monobloc air source heat pump uses natural refrigerant gas R290 to deliver high performance with a lower environmental impact.

Available in six versions, with a range of power outputs, the Magis M Top is ideal for new build and retrofit residential projects. It provides heating and cooling, with flow temperatures of up to 75°C, making it suitable for use with high-temperature emitters such as radiators and fan coil units in addition to low-temperature under
floor or radiator systems.

Designed for efficient operation, the unit helps to minimise electricity consumption, while inverter technology allows it to modulate output in line with demand. This improves overall performance, particularly during milder weather conditions when full capacity is not required.

Features

  • 5 year warranty on approved and correctly installed and maintained installations
  • Available in six versions: four single-phase and two three-phase models, from 5 kW to 16 kW
  • Can be installed individually, in a cascade or in combination with an Alpha boiler for hybrid solutions
  • Provides heating, cooling and domestic hot water
  • Hermetically sealed unit with no requirement for F-Gas certified installation
  • Single fan and Silent Mode function to ensure quiet operation
  • Compatible with solar PV systems
  • HP Keymark Certification meaning it is MCS approved
  • Hermetically sealed R290 refrigerant gas circuit (GWP=0.02)
  • Max flow temperature: 75°C (central heating) and 65°C (domestic hot water), without needing additional heat sources
  • Silent operation: 35 dB (A)
  • Protection rating IPX4 (approved for fully exposed outdoor installation)
  • Energetic class in heating: A+++ LT (35 °C), A++ MT (55 °C)
  • Smart Grid ready function
  • Entire range features a single-fan and Bluefin treatment
  • Modbus communication protocol integrates with home automation systems via BMS port

Downloads

Magis M Top heat pump brochure (6.13 MB)
